location：Home - Products - Toroid Winding Machine Series

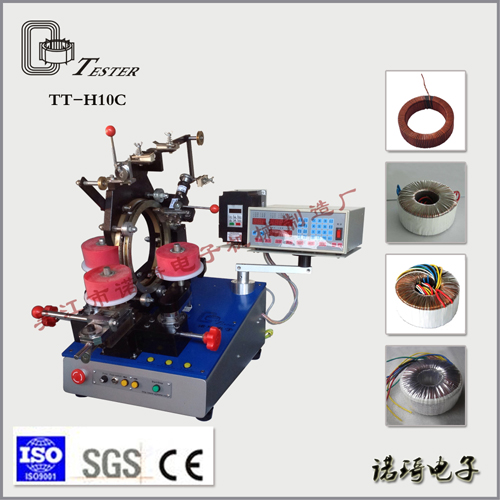

TT-H10C

機器型號Machine Type	TT-H10C
適用線徑Wire Size(mm)	0.5-1.5
儲線環直徑Shuttle Diameter(mm)	250
最小完成內徑MIN.FIN I.D.(mm)	25
適用外徑COIL O.D..(mm)	50-200
鐵心最大高度MAX. HEIGHT(mm)	80
最高轉速MaxSpeed(rpm)	200Rpm
主軸馬達Main Motor	AC,0.75KW
排線馬達Spreading Motor	DC 4A/Stepping Motor
凈重Net Weight(kg)	91
尺寸Dimensions L×W×H(mm)	740670700
video link	http://v.youku.com/v_show/id_XNDQ0NDI4NjIw.html
本公司可根據客戶需求，設計各種型號規格的繞線機產品，以配合各種線圈的繞制需求。 We can customize the winding machine according to your special requirement.
